Performance Increase – Stage 1 : 45-50hp, 49ft-lbs
Stage 1 Acceleration 100-200Km/h : Reduced by 0.6s
Performance Increase – Stage 2 : 60-80hp, 60-70ft-lbs

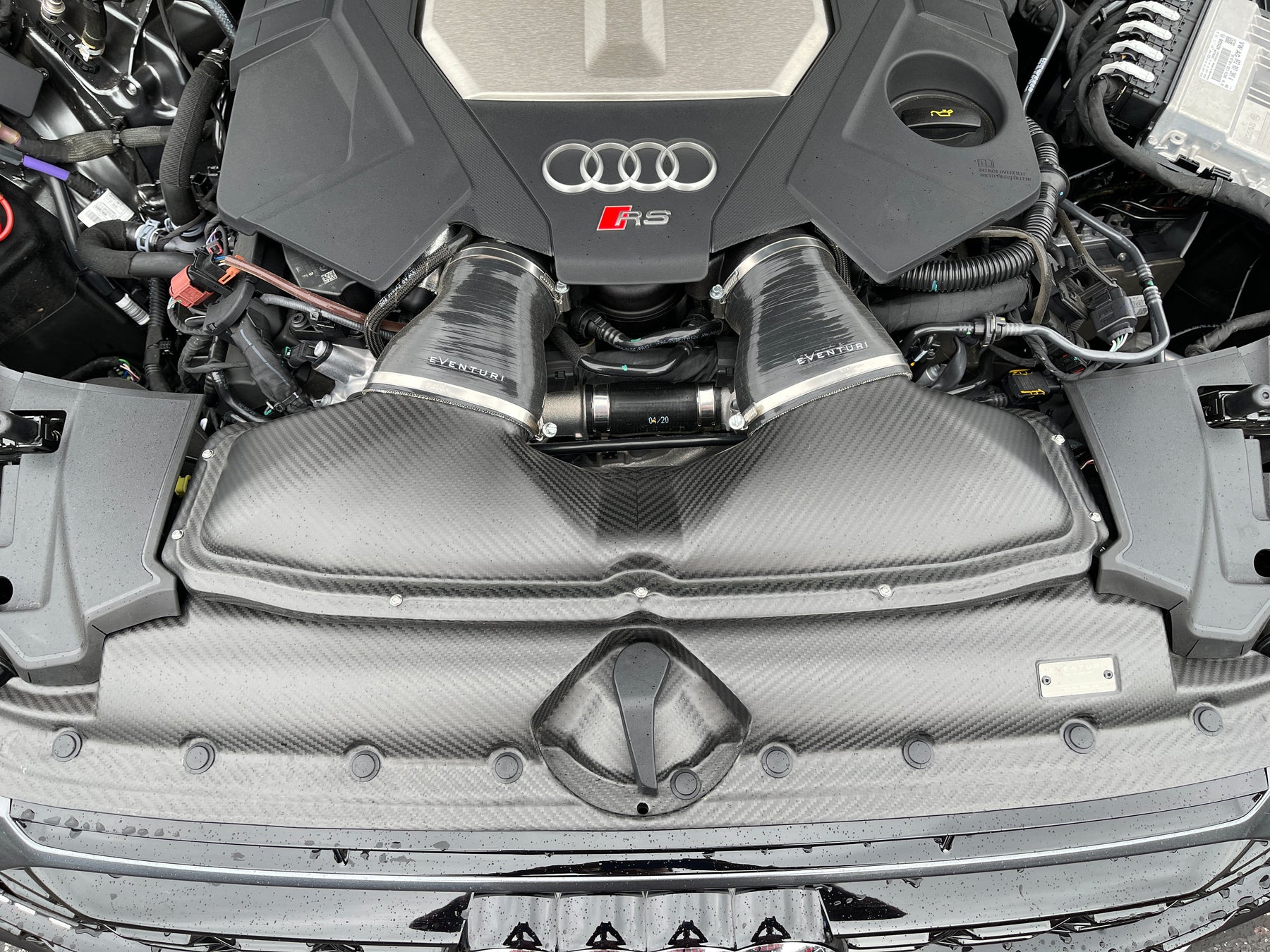

The Audi C8 RS6 intake system is the culmination of extensive development, testing and prototyping. Our aim was to address 2 main criteria: 1) Increased flow rate. 2) Smooth Airflow. The first objective was met by utilizing all of the limited space available in the RS6 engine bay which was heavily restricted by the underside of the hood. Our solution was to completely redesign the entire airbox which maximized volume, increased flow entry openings and created a more favorable filter angle to the turbos. Furthermore we dramatically increased the size of the turbo inlets by as much as 85% when measuring the cross sectional area at the openings. The second objective was met by designing an organically shaped system with a custom rounded panel filter to ensure the airflow path contained no sharp corners and therefore allowed for the flow to remain laminar. With smooth transitions from the filter to the turbo inlets, our intake minimizes the formation of turbulence and therefore the turbos are able to operate more efficiently. We partnered with BMC for a bespoke filter element to ensure that the filtration area is as large as possible whilst keeping airflow clean.
With all objectives met, our C8 RS6 intake system delivers on all fronts and allows for the turbos to generate boost more efficiently. This results in an improved throttle response and significant power gains, independently tested which increase with higher states of tune. The performance gains measured are a result of the complete system we have developed from the airbox base to the lid and the inlets.
Each Intake System Consists Of:
