034Motorsport MK8 Volkswagen GTI EA888.4 2.0T Dynamic+ Tuning ECU & DQ381 G2 Tuning BundleRegular price $800.00 Sale price $605.00 Save $195.00
The 034Motorsport Dynamic+ Tuning Software for MK8 Volkswagen GTI equipped with the EA888 Gen 4 2.0T inline-four engine is designed to transform the driving experience of your vehicle! Flashed directly through your vehicle’s OBD-II port, 034Motorsport’s proprietary calibrations for the ECU safely and effectively increase the power output of the turbocharged inline-four in a refined manner. The result is a significant improvement in acceleration and throttle response, without any sacrifice in driveability or reliability.
034Motorsport MK8 Volkswagen GTI EA888 Gen 4 2.0T Dynamic+ Performance Software was developed entirely in-house on 034Motorsport's Development MK8 GTI. The calibrations were then refined on multiple enthusiast-owned beta tester cars around the world.
Included at no extra cost is the Stage 1 Dynamic+ Performance TCU Software for MK8 Volkswagen GTI equipped with the DQ381 G2 7-Speed DSG transmission. At an extra cost, upgrade to the Stage 2 TCU Tuning to further enhance the shifting and acceleration of your DSG Equipped 2.0T! Flashed directly through your vehicle’s OBD-II port, 034Motorsport’s proprietary calibrations for the DQ381 G2 TCU safely and effectively raise the torque limits of the DSG, allowing your car to make use of Stage 1 Performance Software.
034Motorsport Dynamic+ offers manual transmission users Low Torque files to maximize performance and the clutch life of stock clutch equipped manual MK8 GTI’s. These files are included at no additional cost for all octanes!
034Motorsport Engineers develop special inhouse tools that allow us to access the firmware and maps inside the factory ECU, this level of engineering is required to prevent work-arounds and bandaids that many aftermarket companies resort to. 034Motorsport engineers and optimizes the ECU calibrations just like Volkswagen engineers would, but accessing the source of how the ECU controls the engine and making changes at the base level.
This is the ONLY way 034Motorsport can ensure our calibrations meet our high standards for ultimate power with smooth drivability, perfect function, reliability and added functions and features even beyond what the factory programming can provide.
NOTE: The E85 calibration is not a flex-fuel style tune. The tune will work with E85 directly from the pump, both summer and winter blends (ethanol content can vary from E60-E85). This tune requires only E85 be pumped into the fuel tank. Gasoline blends and race fuel mixtures should not be used, and engine damage could occur if the incorrect fuel or octane is used. We strongly recommend an ethanol content gauge be used so that you can monitor the actual ethanol content at the pump you are using.
When switching fuels, it takes about 20-30 minutes of normal driving for the new tank of fuel to fully circulate through the system when filled at E. Please minimize load (don’t floor it!) until you have driven the car for at least 30 minutes. Ethanol content analyzers installed close to the fuel rail will also help you see when the ethanol has fully run through the system.
Unlocking Extra Torque in DQ381 G2 Equipped GTI’s
As with any automatic transmission vehicle, the ECU and TCU computers work synchronously to properly apply torque to the vehicles drivetrain in a safe and reliable manner. Within both the ECU and TCU, there are factory safety tables that limit overall torque output based upon what the factory first tuned the car for. The ECU reports the output of torque from the engine to the TCU, and the TCU decides if this is suitable, or too much. If it is too much, the TCU will command the ECU to reduce torque output based upon its safety tables.
For vehicles that have a TCU that cannot be tuned, the ECU will safely limit the overall torque that is able to be produced. It is safe to drive your car in this condition with only the ECU tuned.
034Motorsport takes a holistic approach with its Dynamic+ Tuning, and aims to retain as many OEM safety protocols as possible. While it is possible to tune around the factory TCU torque limiters from the ECU side, this is done at the expense of torque safety features that are integral in keeping your transmission running safely. 034Motorsport’s calibrators tune the ECU to work with the TCU to provide accurate torque values, and recalibrate the appropriate safety ranges for the TCU. Taking these extra steps to retain OEM safety systems on the ECU and TCU side is just one of the many reasons that Dynamic+ software provides substantial yet reliable performance increases.
We are happy to provide our Stage 1 Dynamic+ TCU tuning at no additional cost ($150 value) to the customer in order to ensure that you are maximizing the performance and reliability of your MK8 GTI!
ECU Software Features:
034Motorsport MK8 Volkswagen GTI EA888 Gen 4 2.0T PERFORMANCE SOFTWARE COMPARISON:
|STAGE||FUEL||MAX HP||MAX TQ||MAX HP GAIN||MAX TQ GAIN||REV LIMITER*||SPEED LIMITER|
|Stock||91 Oct (AKI)||262 HP||306 TQ||NA||NA||6,400 RPM||124 MPH|
|Stage 1||91 Oct (AKI)||355 HP||412 TQ||113 HP @ 6,400 RPM||122 TQ @ 2,200 RPM||6,400 RPM||∞|
|Stage 1||93 Oct (AKI)||366 HP||428 TQ||121 HP @ 4,100 RPM||128 TQ @ 2,500 RPM||6,400 RPM||∞|
|Stage 1||E85 (AKI)||394 HP||418 TQ||154 HP @ 6,300 RPM||143 TQ @ 5,200 RPM||6,400 RPM||∞|
***All octane ratings are in US standard AKI (RON+MON). Some ROW countries such as the UK use a RON octane rating that differs from US Octane ratings. Please email email@example.com to ensure you are running the correct octane file for your area. Running the incorrect octane file for your fuel can result in irreversible damage.
Dynamic+ ECU Features:
Thermal Management Safety Strategies:
With increased power, comes increased heat. With increased heat, comes the need for additional management. For charge air temperature, 034Motorsport has implemented key safety features to keep your engine running optimally and safely in virtually any condition - just like the OEM calibration. Substantial effort was spent on balancing the trade off of charge temp for power, and improving the compressor efficiency so that it doesn't generate too much charge temp.
Charge Air Temp: When the charge temp exceeds 80*C there is a reduction in power output. When the charge temp exceeds 85*C there is a more significant reduction in power output. This charge temp limitation is there to prevent knock events, which can severely damage a motor. With these safety measures in place, you can confidently drive your car, from the top of Pikes Peak to Death Valley, knowing the factory ECU has optimal performance and safety covered..
Coolant Temp/Fan Strategy: From the factory, Volkswagen likes to run hotter water temps to reduce fluid friction losses from cooler, more viscous oil. While better for efficiency, this strategy becomes a safety issue when loads and heat are increased. 034Motorsport calibrators have rescaled the coolant temperature targets and fan control strategies to target lower coolant temperatures when in higher heat conditions, allowing the car to run within a safe heat range rescaled for the added heat that comes from tuning the engine. Once again, this means that 034Motorsport calibrators have kept your confidence in safety fully intact from the OEM configuration.
Fuel System Optimization:
While E85 provides substantial increases in power, it requires about 30% more fuel than standard pump gasoline per ignition cycle. Utilizing a variety of fuel stratified injection strategies, 034Motorsport calibrators have further optimized the factory fueling system to be able to adequately support full E85 on factory hardware for Stage 1.
Dynamic+ TCU Features:
Stage 1 TCU Tune:
Torque Safety Strategy Enhancements: The Dynamic+ ECU Tuning accurately reports torque values to the TCU to ensure that all safety systems are intact in both control units, and the added torque from tuning is properly adjusted for when driving/shifting, including all safety systems designed to protect the engine and transmission. This results in better shift quality as the transmission is not having to reduce engine torque or having to adapt to misreported inputs.
Clutch Pressure Increases: In order to safely apply the increased horsepower and torque, DSG Clutch Pressures are increased in all drive modes. Expect to feel firmer and more solid shifts!
Stage 2 TCU Tune
034Motorsport Stage 2 Performance TCU Software for the EA888 Gen 4 2.0T engines are currently in development!
034Motorsport MK8 Volkswagen GTI EA888 Gen 4 2.0T Stage Descriptions:
034Motorsport Stage 1 Performance Software for the EA888 Gen 4 2.0T engine running pump gas or ethanol is engineered to safely increase the horsepower and torque with no additional hardware required.
In addition to power improvements, 034Motorsport's engineers spent a significant amount of time refining the throttle mapping in order to provide improved throttle response and allow for more precise throttle modulation and further control of the vehicle when driving on track. Due to the limitations of the stock turbocharger on the EA888 Gen 4, the rev limiter was not adjusted.
034Motorsport EA888 Gen 4 2.0T Performance Software is flashed via the factory OBD-II port, and does not require any physical modification of the factory ECU. Stage 1 is available in 91 Octane, 93 Octane, and E85. ALL FILES ARE US (MON+RON) RATING, ROW OCTANE RATINGS MAY DIFFER. IF YOU ARE A UK/ROW CUSTOMER, PLEASE EMAIL TUNING@034MOTORSPORT.COM FOR ASSISTANCE ON FUEL MAP SELECTION.
034Motorsport Stage 2 Performance ECU Software for the EA888 Gen 4 2.0T engines are currently in development!
034Motorsport Stage 3 Performance ECU Software for the EA888 Gen 4 2.0T engines are currently in development!

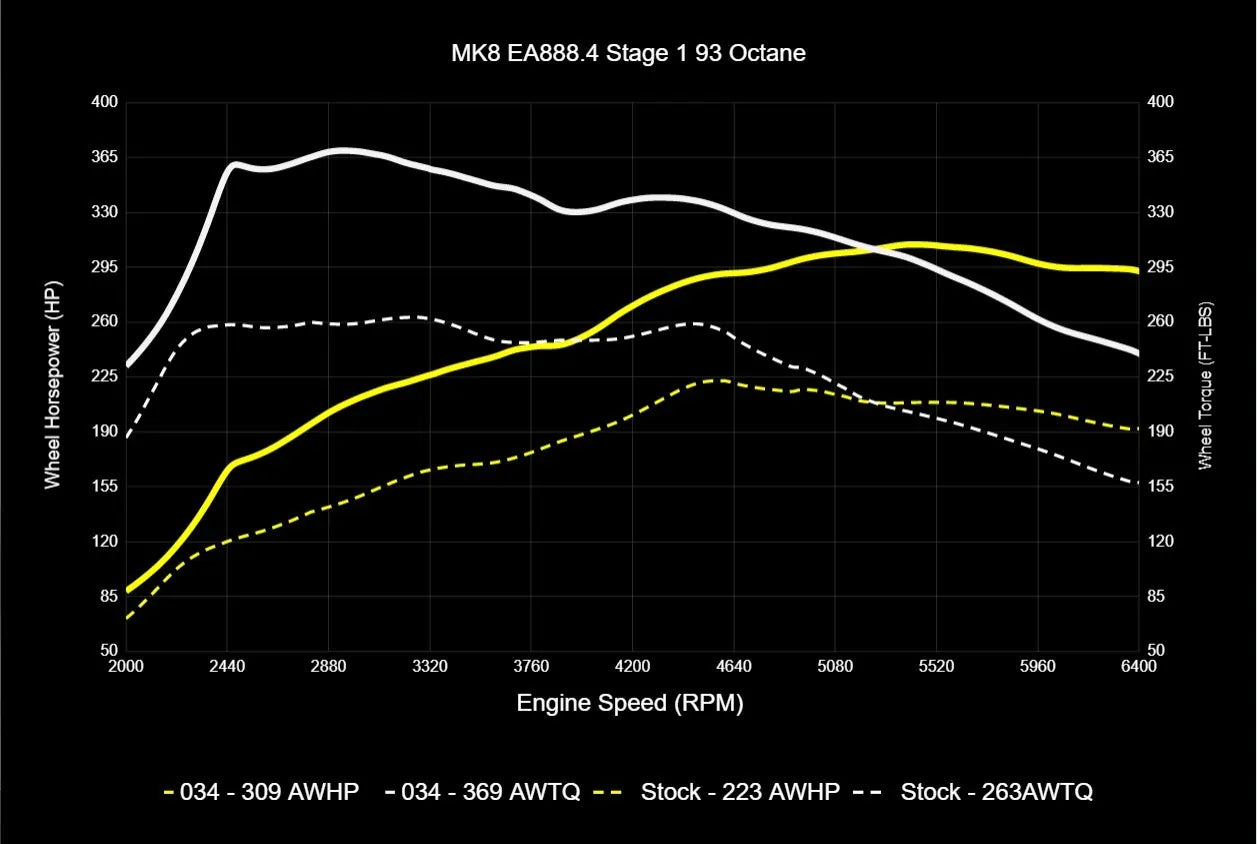

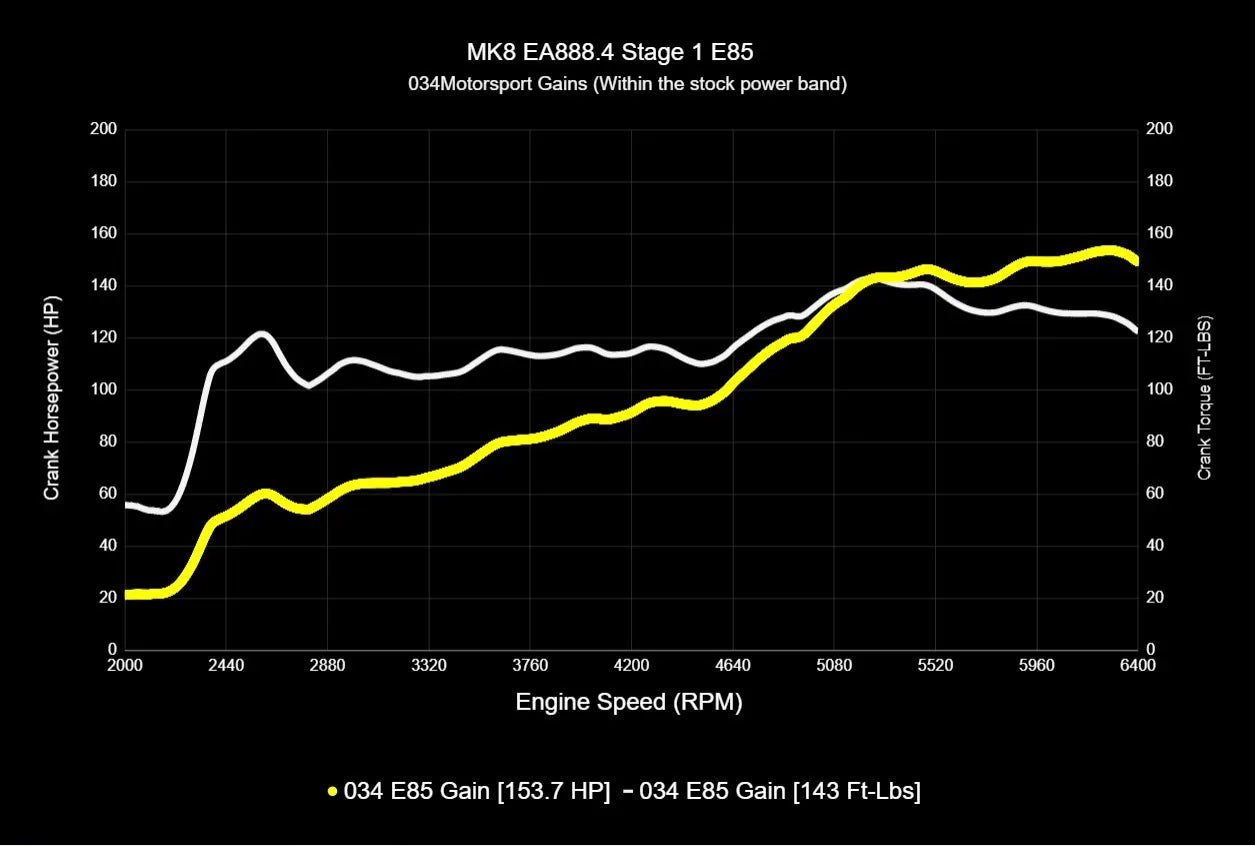

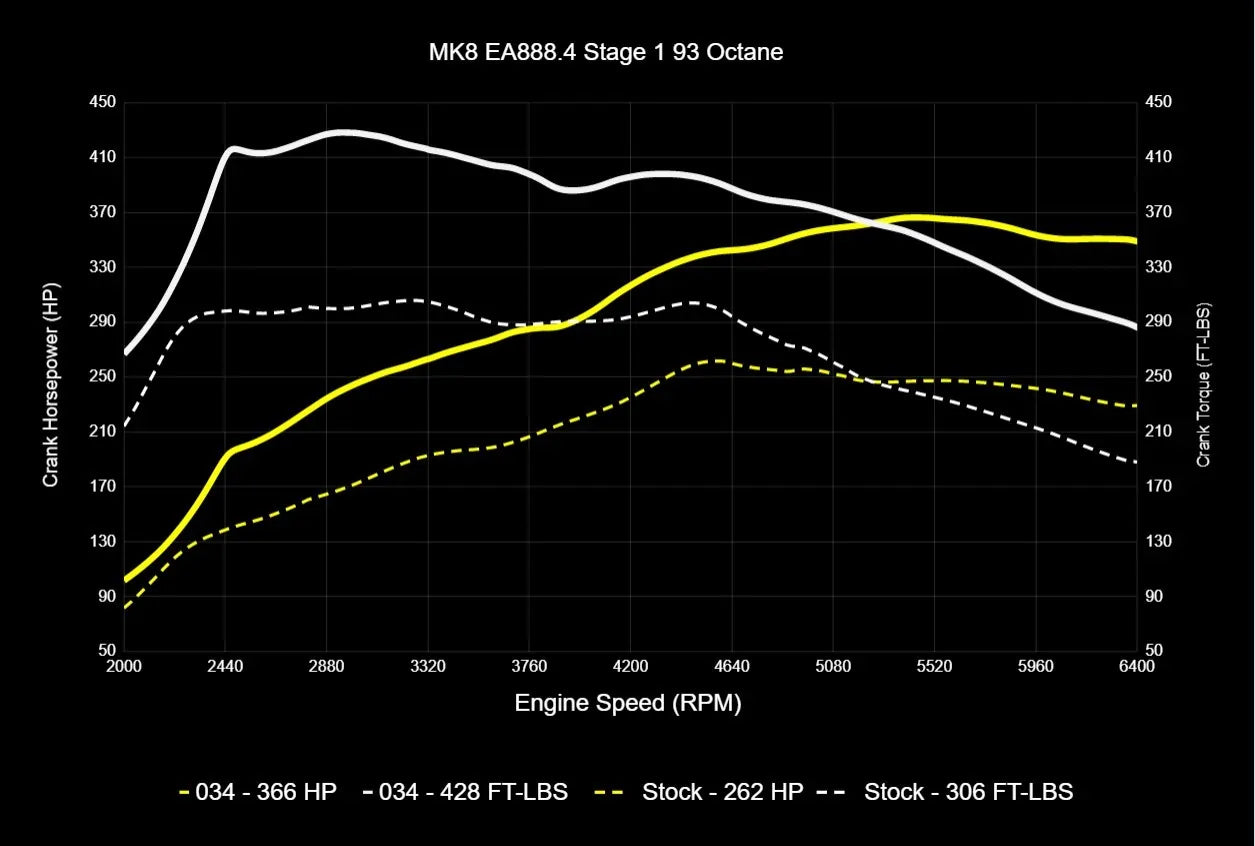

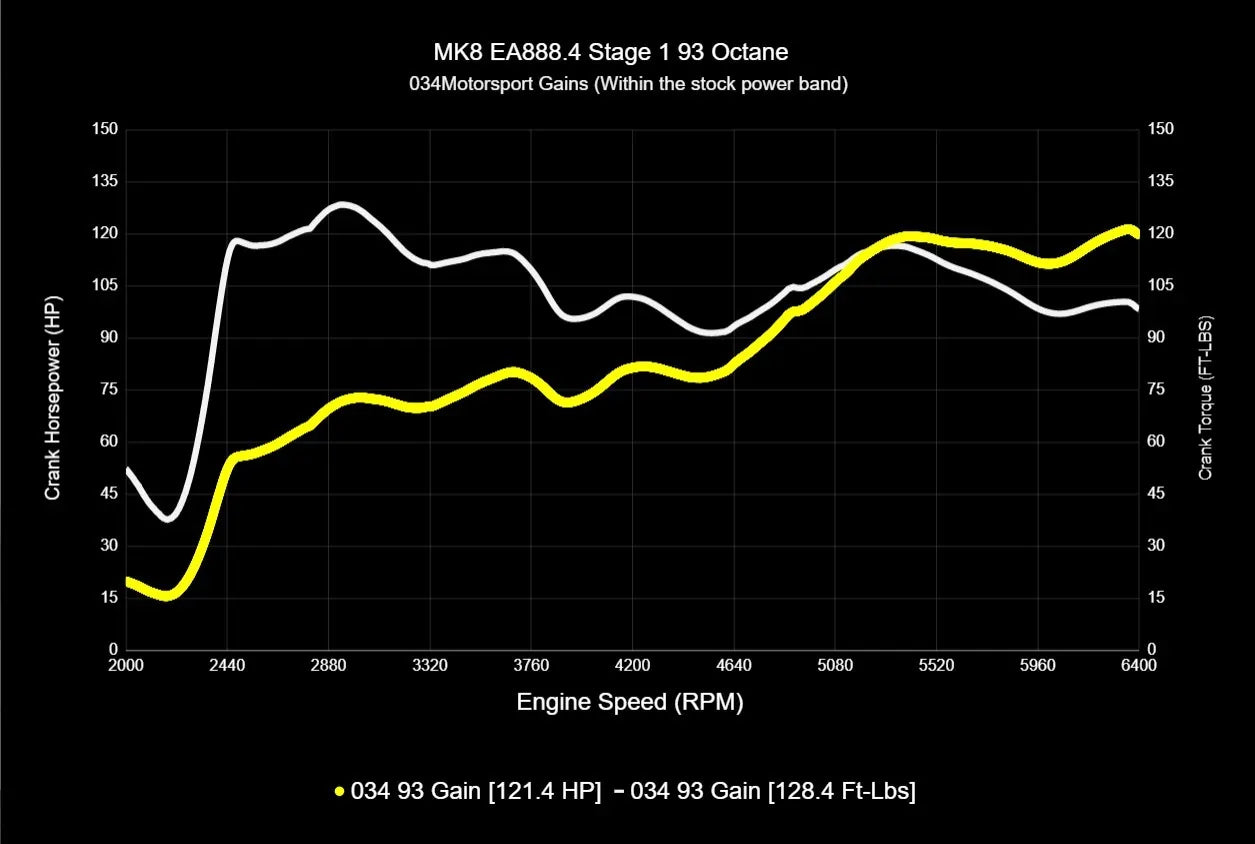

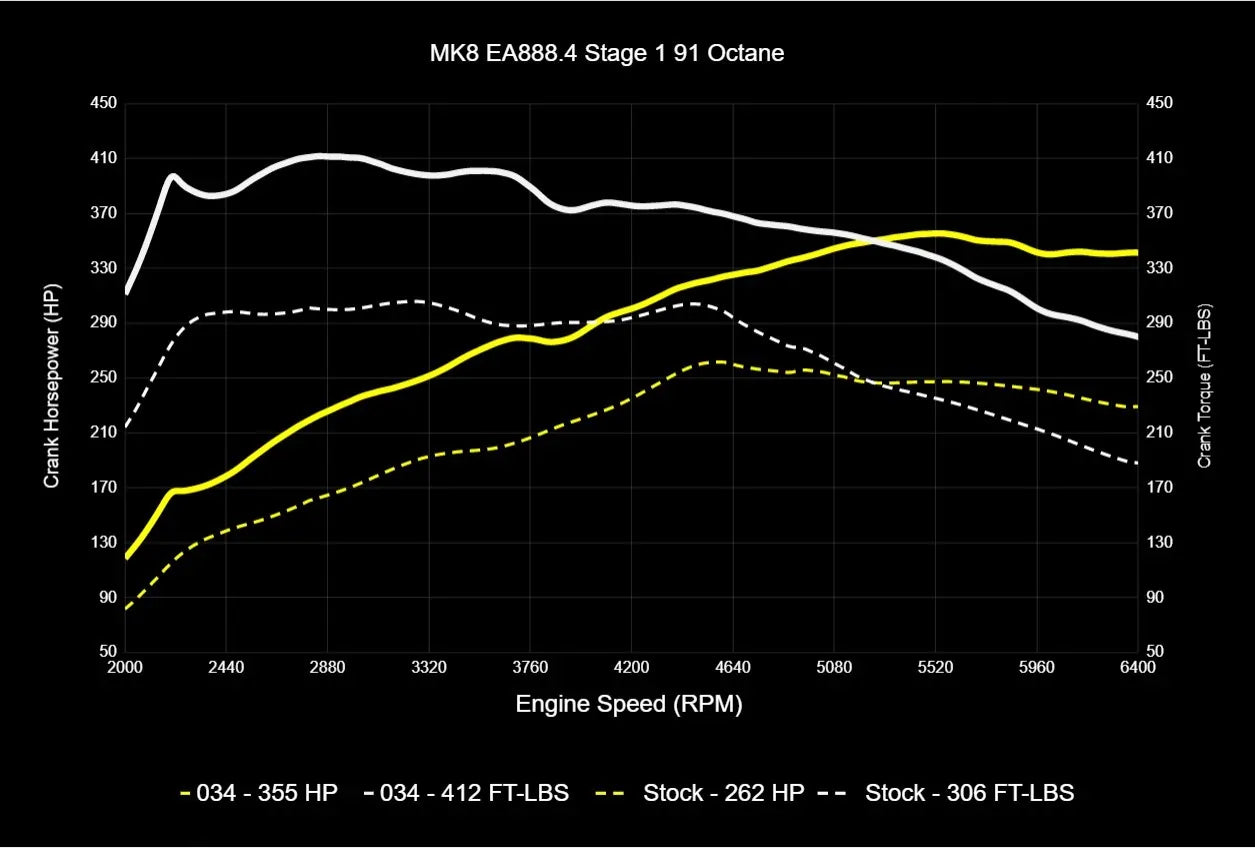

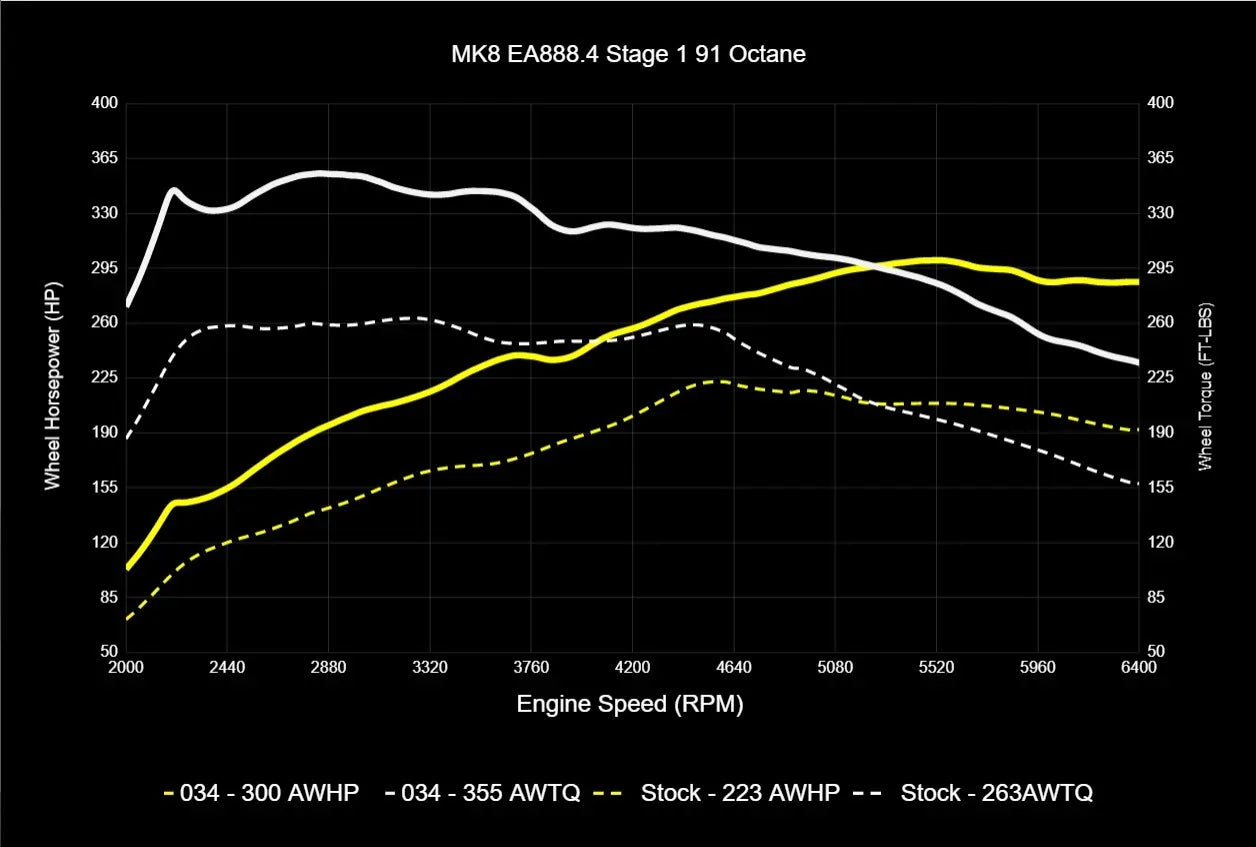

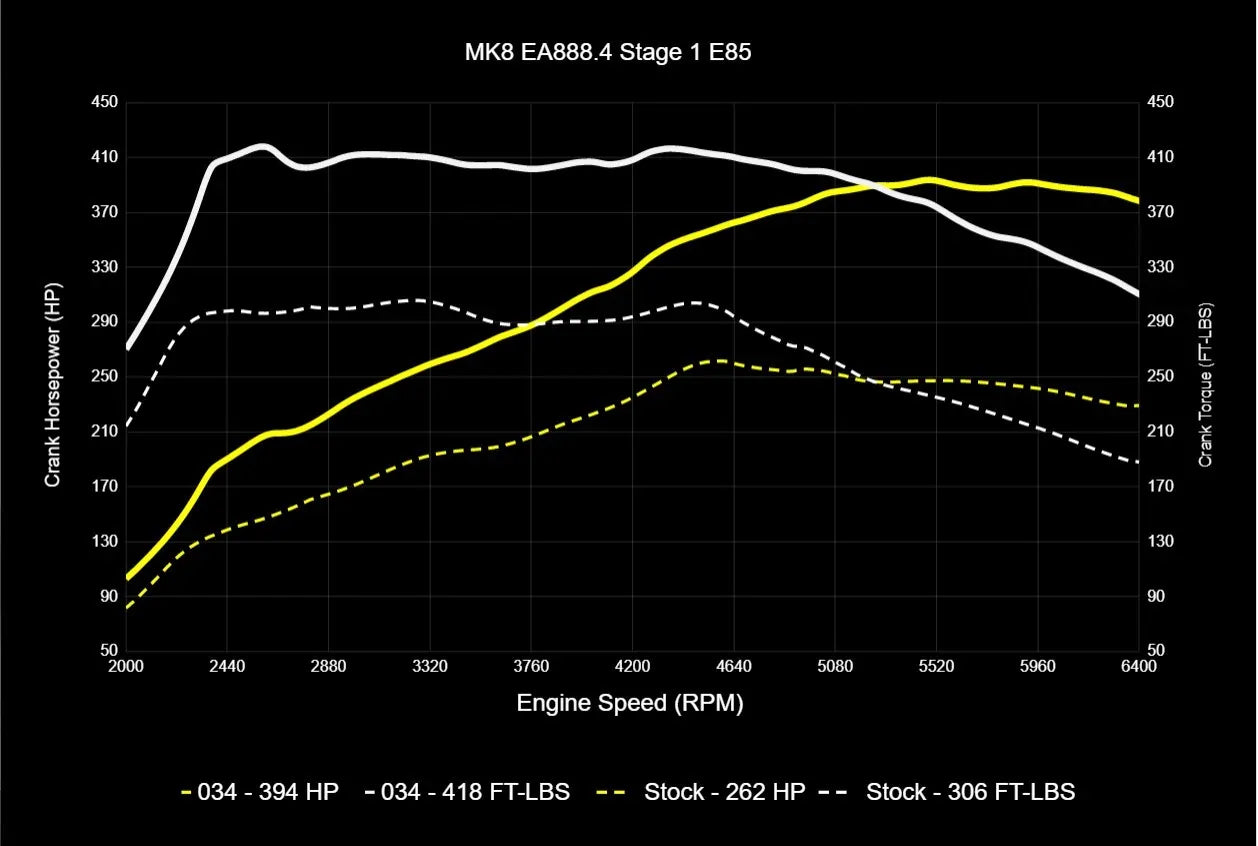

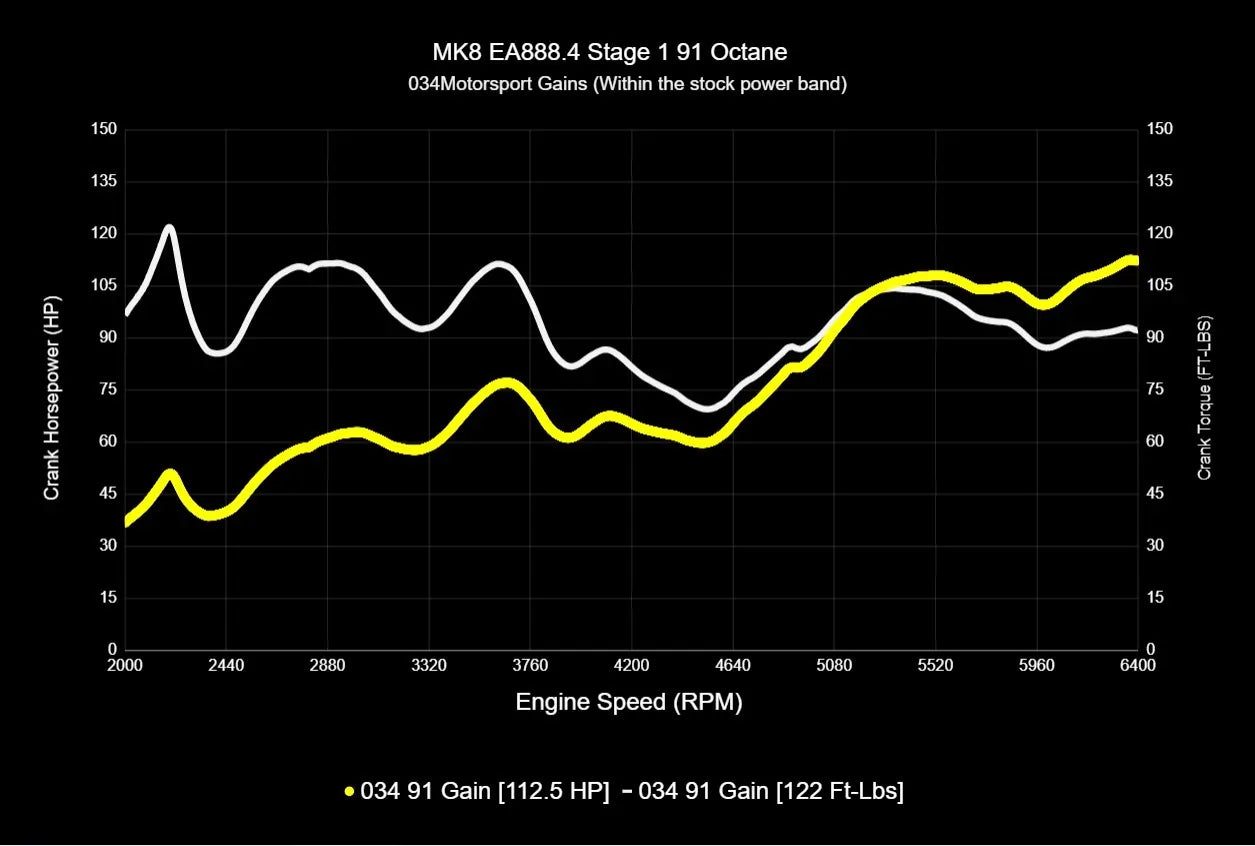

034Motorsport EA888 Gen 4 2.0T Turbocharged Performance Software Dyno Charts:
Select Dyno Chart:
ECU Tune Supporting Modification Requirements:
|STAGE||REQUIRED MODIFICATIONS||RECOMMENDED MODIFICATIONS|
|Stage 1 91||
|Stage 1 93||
|Stage 1 E85||
034Motorsport Dynamic+ End User Flashing Kit:
034Motorsport's Dynamic+ End User Flashing Kit allows customers to install their 034Motorsport Dynamic+ Performance Software themselves. In addition, End User Flashing allows Dynamic+ Performance Software customers to receive and install software updates and revisions, flash back to stock, or upgrade to the next stage of performance software for their vehicle.
Requirements for End User Flashing:
- Windows 10/11 Laptop with Available USB Port
- Power Supply for Laptop
- Secure Wired (Or Very Stable WiFi) High-Speed Internet Connection
- Battery Charger, 20AMP minimum (CTEK Brand recommended)
- Available Electrical Outlets
034Motorsport End User Flashing Kit Contents:
- 034Motorsport OBD-II Adapter
- USB-A to USB-B Cable
- Carrying Case
- User Credentials (Provided Via Email)
- This product is sold for racing use as well as use on vehicles not registered for on highway use.
- By purchasing this product, you understand that this product is sold for racing use as well as used on vehicles not registered for on highway use, and that it is not legal for use on highway or street vehicles.
Please Note: Some late model 2022 vehicles are equipped with a TCU Box Code version that we do not currently have support for. If you have a 2022 vehicle and would like to confirm support of your vehicle, please gather the ECU & TCU Box Code and Software Version and send them to: firstname.lastname@example.org & email@example.com for verification. To check what your ECU & TCU Box Code and Software Version are, please use this guide here.
